Four SSDs require more than a long expansion slot. Icy Dock MB308A5 addresses a specialised NVMe storage layout, and its most useful buying detail is a requirement that is easy to miss: the host must split the PCIe link. An SA builder should prove that motherboard support before ordering an adapter, cables and removable storage hardware.
Quick Answer
The MB308A5 requires host PCIe bifurcation, described as x4/x4/x4/x4, to address four NVMe drives. It does not create that function itself, and an unsupported host may recognise only one drive. For a simpler separate option, Hiksemi T100 Pocket 512GB showed available stock at R899 on the 7 October 2026 catalogue read; that USB SSD is not a price or performance equivalent for the adapter.
🔧 Mechanical fit is only the first question

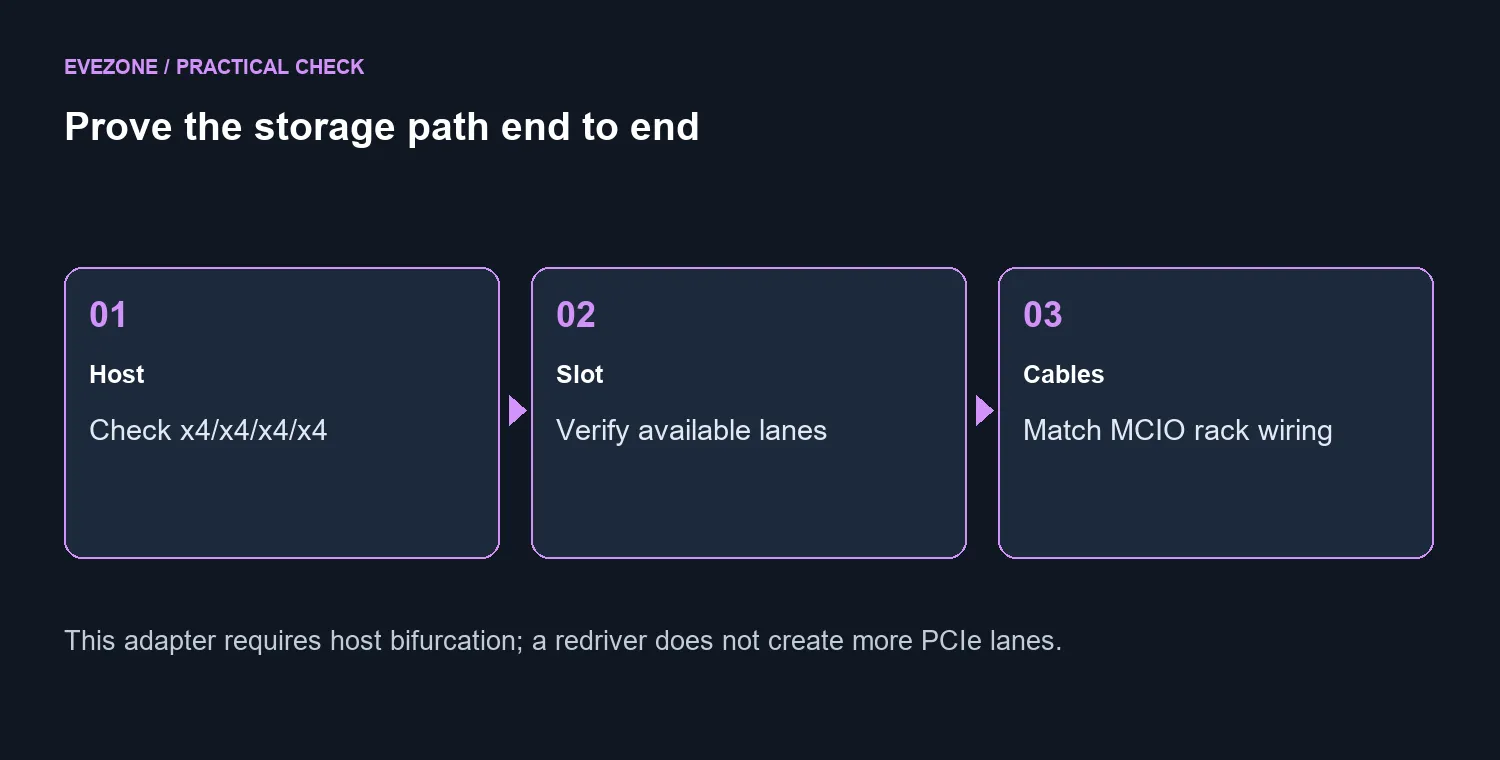

An x16-shaped slot can be wired with fewer lanes, share resources with another connection, or lack the splitting mode you need. Read the motherboard manual for the exact slot and processor combination. Then check the available firmware options. Do that while the board is still in the planning stage, rather than discovering the limitation after the storage rack has arrived.
A clear compatibility note should name the board revision, processor, slot and required setting. If an answer only says that the card fits, ask the more useful question: can this specific configuration expose the intended independent storage links? CPU and slot support matter together. Browse NVMe SSDs after that topology is established, so drive selection follows the supported connection.

📌 A redriver solves a different problem
The manufacturer describes a Gen5 redriver and clock buffering for signal integrity. That concerns the reliability of the high-speed path. It is not a substitute for bifurcation, a source of extra lanes, or evidence that any long cable arrangement will work. Treat the host, adapter and destination as one storage system.
MCIO cabling also needs an exact match with the enclosure and drive path. A connector that looks right does not settle every electrical detail. Ask for the supported cable and rack combination, and check that the complete system has adequate cooling and service access. A storage drawer is useful only if you can maintain it without disturbing other important connections.
💰 Decide whether four drives solve your problem
Write down the capacity and access pattern you need. A removable multi-drive NVMe layout may make sense for repeated drive handling or a carefully planned workstation. It is a more complicated answer to ordinary file storage than a single internal drive or external backup device. Do not buy the topology merely because the advertised link is fast.
The R899 USB comparison provides a concrete local spending point for a different task: portable files. It does not show that USB and a PCIe NVMe rack have equal performance. If your project needs Gen 5 NVMe storage, include the host platform, adapter, cables, enclosures and cooling in the total. The adapter's unverified local quote cannot be replaced with a currency conversion of an overseas listing.
🔎 Preserve GPU and storage capacity together
Before allocating the expansion slot, account for the graphics card and every other device already installed. Consult the board's lane-sharing notes to see what changes when the storage path is enabled. Keep a record of the original settings so the intended configuration is easy to explain during support.
The product page contains a connector-count inconsistency between its headline and part of its table. Resolve that with the exact manual or manufacturer before ordering; this guide does not choose a conflicting count for you. The host must support the four-drive bifurcation mode; a physical full-length slot alone does not establish that capability. Wait for a complete compatibility answer if any part of the path remains uncertain.
Frequently Asked Questions
Does the card create four independent links?
Only when the host motherboard supports the required PCIe bifurcation. The adapter does not supply that function itself.
What BIOS mode should I look for?
The manufacturer describes x4/x4/x4/x4 for a four-drive topology. Check the board manual for the chosen slot and installed processor.
Is a long PCIe slot enough?
No. Mechanical slot length does not establish its electrical lane count, lane sharing or supported splitting modes.
What does the redriver do?
It helps maintain high-speed signal integrity along the storage path. It cannot replace motherboard lane support.
Can ordinary SATA drives use it?
The product is an NVMe host adapter. A SATA connection is a different interface and must not be assumed compatible.
What price does the article use?
Hiksemi T100 Pocket 512GB was R899 on 7 October as a separate USB alternative. It is not a quote for this adapter or NVMe rack.
