A PSU can have the right wattage and still make a build awkward. Lian Li EDGE V2 PSU models put their connectors on an L-shaped extension aimed at dual-chamber cases. The 2 October announcement introduces Gold and Platinum versions, but the first buying question is physical: can you reach the connectors and route the cables in your chosen chassis?
Quick Answer
Choose the new range around PSU compartment clearance, GPU requirements and the exact accessory bundle. The published dimensions are 182 x 86 x 150mm across the V2 wattages. As a local cost reference, GAMDIAS HELIOS M1-450B was R599 and in stock at Evetech on 3 October 2026; that lower-capacity non-modular unit is not an equivalent to these new models. A confirmed South African EDGE V2 price is still needed.

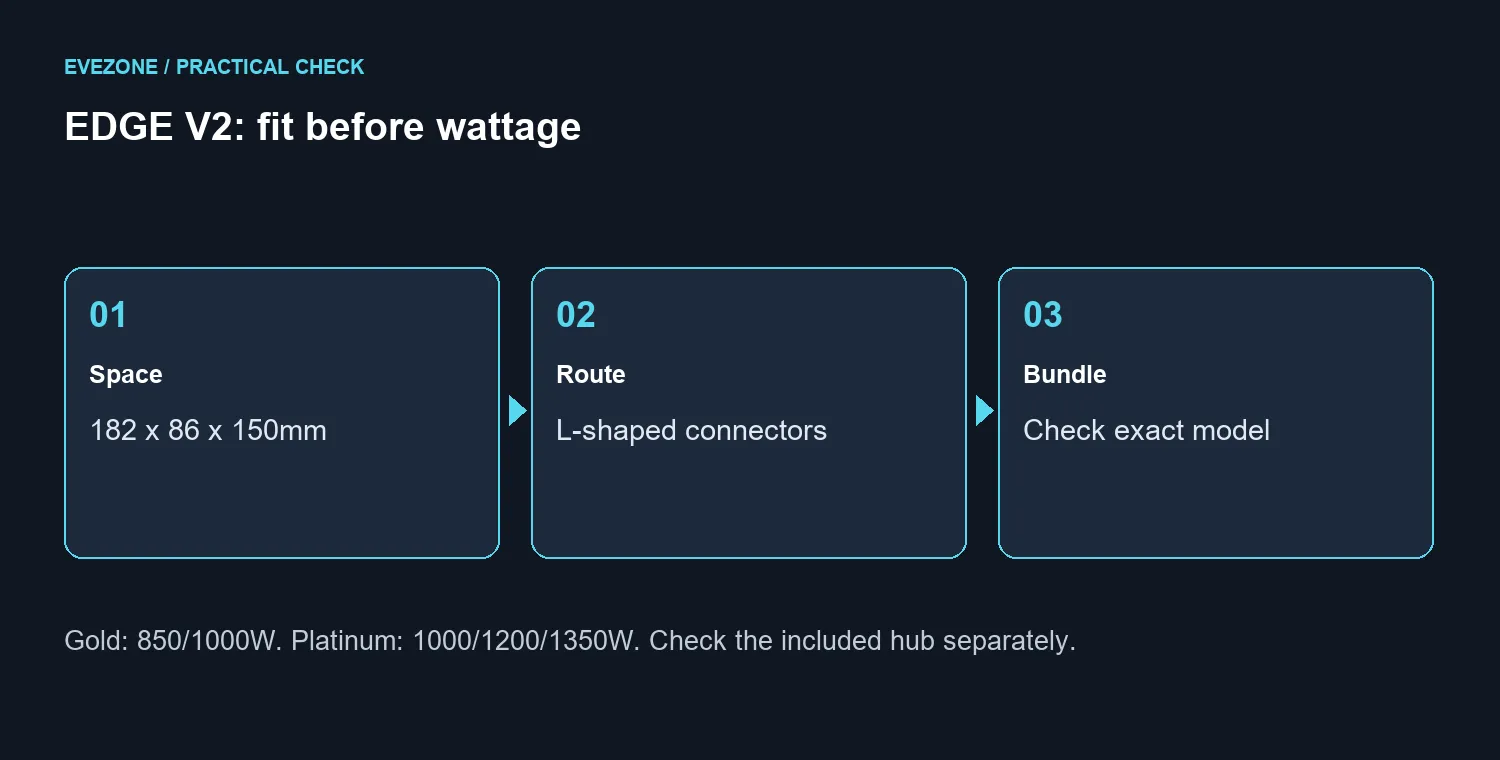

📐 Measure the compartment and connector side
The L-shaped arrangement matters most when the PSU sits in a second chamber. Its connectors face outward to simplify access, rather than hiding at the end of a conventional rectangular block. That can be useful during assembly, but only if the case gives the extension and its cables somewhere to go.
Measure the installation space before ordering, and look at the side from which cables enter. Allow room to reach the modular sockets after the PSU is mounted. A published dimension does not include every bend you will need in a connected cable, nor does it prove that a nearby drive tray leaves a comfortable route.
Use the case range to shortlist the chassis first. If you already own the case, its installation instructions are more useful than a photograph of someone else's completed build. Check whether the intended orientation leaves the intake and cable path unobstructed.

🔌 Separate capacity from the accessory bundle
Gold V2 is announced in 850W and 1000W versions; Platinum V2 adds 1000W, 1200W and 1350W choices. Those are capacity options, not a ranking that makes the largest unit the correct answer for every gaming PC. Start with the requirements of the processor, graphics card and the rest of your system, then compare connectors and fit.
There is a practical bundle difference even within Gold. Its specification table lists Hub V2 with the 1000W version, while the 850W model has no included hub. If internal USB expansion is part of your plan, confirm the precise SKU and box contents rather than assuming every EDGE badge carries the same accessories.
Our earlier EDGE Hub ADV coverage dealt with USB, fans and monitoring. This new buying decision concerns the PSU itself: its geometry, wattage and included cables. A separate hub is not a substitute for verifying the power unit.
🧰 Budget for a complete installation
The Gold specification lists a fully modular ATX 3.1 design, a 120mm FDB fan and a ten-year PSU warranty. Check local warranty handling and the exact supplied cable set when a South African quote becomes available. Overseas launch pricing should not be silently turned into a local landed price.
Browse current power supplies for the capacity and connector class you actually need. The R599 reference above establishes that there are cheaper local options; it does not make a 450W Bronze model a sensible replacement for a build that needs much more capacity or different connectors.
Treat modular cables as part of the PSU, not as interchangeable spare wiring. Keep the supplied set with the unit and use an alternative only when its compatibility is explicitly established. If your present PSU already meets the build's requirements, clearer cable access alone may not justify replacing it. A new case or more demanding GPU creates a stronger reason to reassess the whole installation.
Frequently Asked Questions
Which wattages are announced?
Gold V2 offers 850W and 1000W. Platinum V2 offers 1000W, 1200W and 1350W. Choose around system requirements and physical fit.
How large is the PSU?
The launch lists 182 x 86 x 150mm across the EDGE V2 wattages. Leave practical room for cable bends and access as well.
Does every Gold model include a hub?
No. The Gold V2 specification table lists Hub V2 with the 1000W model and no included hub for 850W.
Can I reuse another PSU cable?
Do not assume modular cables are interchangeable. Use the supplied set or a replacement explicitly approved for the exact PSU.
Is a 1350W model always better?
Extra rated capacity is not automatically useful. Check the GPU, processor, connectors and complete build requirements first.
What is the local budget reference?
GAMDIAS HELIOS M1-450B was R599 and in stock on 3 October. It is a lower-capacity non-modular reference, not an EDGE V2 equivalent.
Ready to check your next PSU installation?
Choose the capacity and connectors your build needs, then match the case space and supplied cable set.
