The Thermalright AXP120-X77 South Africa question comes down to millimetres, not marketing. This new top-down cooler is 77 mm high, uses six heatpipes and carries a slim 120 mm fan. Those specifications make it interesting for compact builds, but only if the case, memory and motherboard leave enough physical room.

Quick Answer

The AXP120-X77 measures 133.5 x 122 x 77 mm and supports current AMD AM4 and AM5 sockets plus a wide set of Intel platforms including LGA1700 and LGA1851. Its 120 x 15 mm PWM fan is rated up to 3150 RPM. Local availability was not confirmed, so builders should compare the dimensions and support against active South African cooler listings before designing a case around it.

📏 Why 77 mm is the critical number

Low-profile cooler compatibility starts with the case's maximum CPU-cooler height. The case limit must exceed 77 mm, and a paper match with no margin can still be risky. Side-panel structure, dust filters, manufacturing tolerance and airflow space can all consume the last few millimetres.

The footprint matters too. Thermalright lists a 133.5 x 122 mm heatsink, which spreads over the socket area. That broad top-down shape can help move air across nearby motherboard components, but it can also overlap tall memory modules or heatsinks. The manufacturer specifically tells builders to allow clearance for tall memory.

Socket support is broad: Intel LGA115X, 1200, 1700, 1851, 2011 and 2066, plus AMD AM4 and AM5. Support on a list does not guarantee that every motherboard layout is trouble-free. Check the installation drawing, socket orientation and the exact position of memory, M.2 heatsinks and the top PCIe slot.

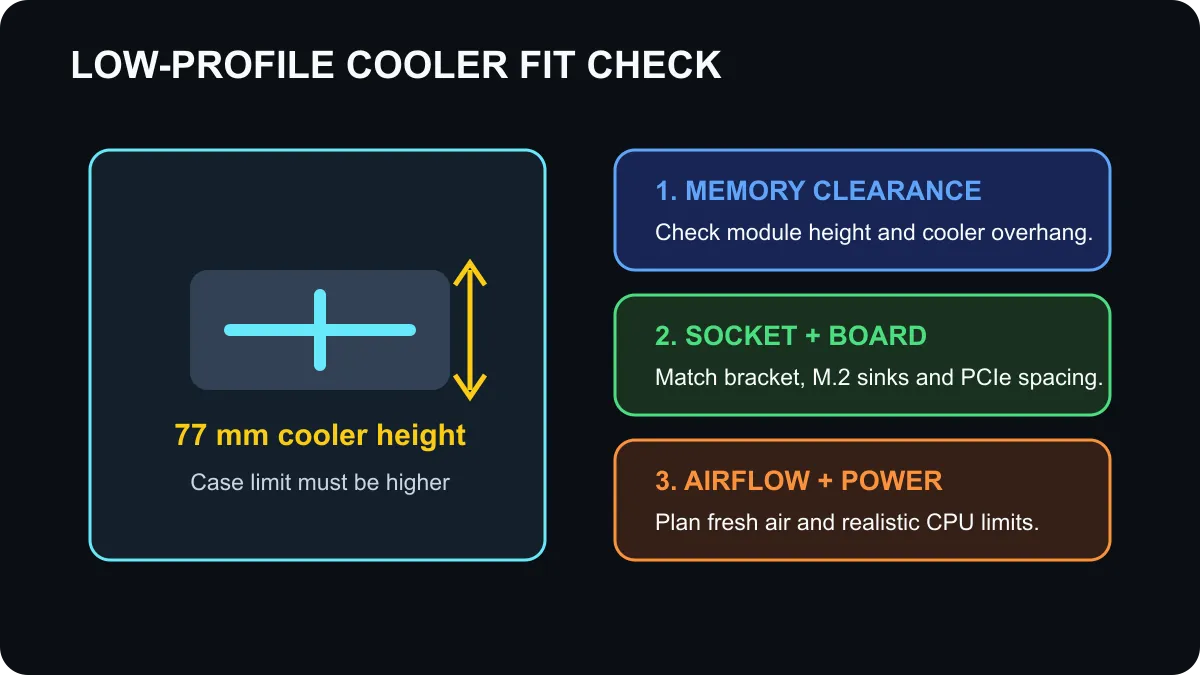

Low-profile CPU cooler fit diagram showing 77 mm case clearance, memory height and socket compatibility.

🌬️ Cooling hardware and expected trade-offs

The heatsink uses six 6 mm heatpipes and a nickel-plated C1100 copper base. Its slim TL-B12015 EX fan is a 120 x 15 mm PWM design rated up to 3150 RPM, 83.61 CFM and 3.4 mm H2O, with a listed maximum noise level of 37.07 dBA. Those are manufacturer specifications, not a guarantee of system temperature or noise.

A slim fan can fit where a conventional 25 mm model cannot, but higher maximum speed often means more audible noise under heavy load. Real results depend on CPU power limits, case intake, ambient temperature and fan curves. A compact build with restricted intake may perform worse than a larger case using a cheaper tower cooler.

The live Evetech cooler snapshot began at R399 for an Intel Laminar RM1, with active air-cooler choices around R699 and higher. These are not direct size or performance equivalents. They are useful local references for judging whether a specialist imported low-profile design is worth its landed price.

Browse current CPU coolers, compare air-cooler options, and review the cooler best sellers before choosing the final case layout.

✅ A compact-build fit checklist

Start with the case specification and leave real clearance above the 77 mm cooler. Then check memory height and the cooler orientation shown in the manual. Confirm that the supported socket bracket is included for the exact retail package you are buying.

Next, check the CPU's expected sustained power rather than relying only on the socket name. A cooler can mount correctly and still be a poor thermal match for an unrestricted high-power processor. Finally, plan intake and exhaust. A top-down cooler needs access to fresh air and a path for warmed air to leave the case.

Frequently Asked Questions

How tall is the Thermalright AXP120-X77?

Thermalright lists the complete cooler at 77 mm high, so the case limit must exceed that figure.

How many heatpipes does it use?

The official specification lists six 6 mm heatpipes and a nickel-plated C1100 copper base.

Which sockets are supported?

The list includes Intel LGA115X, 1200, 1700, 1851, 2011 and 2066, plus AMD AM4 and AM5.

What fan is included?

The cooler uses a slim 120 x 15 mm PWM fan rated up to 3150 RPM.

Will it clear tall memory modules?

Clearance depends on the motherboard and module height. Thermalright specifically tells builders to allow room for tall memory.

Is the AXP120-X77 available locally?

No confirmed South African listing appeared in the reviewed material, so compare its dimensions with current stocked coolers.

Building a compact system now? Compare active CPU cooler listings and verify every dimension before ordering the case or memory.

Measure the build before choosing the cooler. Confirm case height, memory clearance, socket hardware and realistic CPU power together.
