Geometric Future Model 3 Fits Big Hardware Into 27 Litres

A 27-litre case that accepts a 435mm graphics card sounds almost contradictory. The Geometric Future Model 3 uses careful component zones to make that compact promise plausible.

Quick Answer

The Model 3 is a 27-litre micro-ATX case with an isolated front power-supply area, graphics-card clearance up to 435mm, a top 360mm radiator mount and support for as many as eight 120mm fans. The launch also introduces an Eskimo Plus 36 AIO and 30mm-thick Squama fans. The exact case is not yet confirmed in the local catalogue. Our 16 August snapshot found compact computer cases from R849.

📦 Compact volume with long-card space

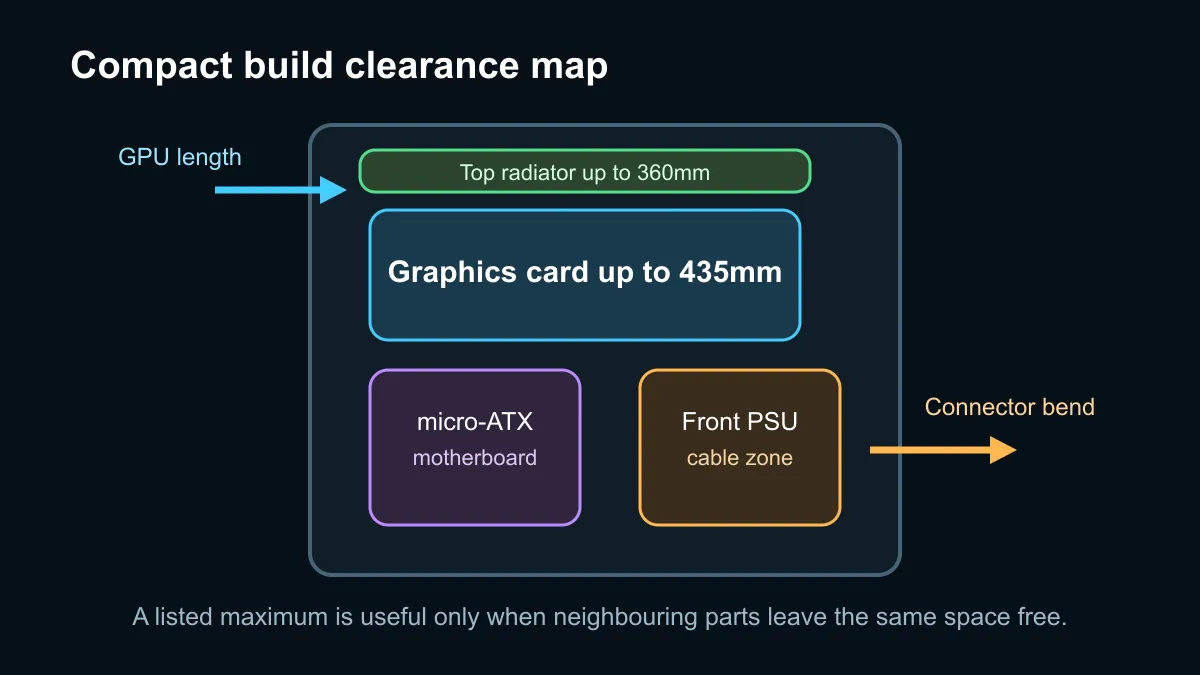

Geometric Future's layout puts the power supply at the front instead of beneath the motherboard. That frees length for a large graphics card without turning the chassis into a conventional tall tower. The official limit of 435mm is generous, but a builder still needs to account for front cabling, connector bends and the thickness of any nearby cooling hardware.

Micro-ATX support makes the case more flexible than a Mini-ITX-only design. A smaller motherboard can reduce the physical footprint while keeping more expansion choices than many tiny systems. The trade-off is a denser workspace. Cable routing, storage position and fan direction become more important because each part shares limited air volume.

🌬️ The cooling range is part of the story

The case ships with five Squama fans according to the launch announcement and can take up to eight 120mm units. The new Squama 3003-12 design is 30mm thick, uses nine blades and is listed for 800 to 2,300rpm operation. Geometric Future quotes up to 84 CFM and 2.93mmH2O, with standard and reverse-flow versions.

Those numbers describe maximum capability, not the noise or temperature of a finished PC. A sensible build uses a clear intake-to-exhaust path instead of filling every mount. Reverse fans can keep the tidy side of the frame visible, but airflow direction must still be checked before installation.

The matching Eskimo Plus 36 uses a 360mm radiator, a 55.8mm square copper base and a pump rated at 1.5 litres per minute. It supports current AMD and Intel platforms. Its arrival beside the case shows the intended ecosystem, but buyers are not required to use the same-brand cooler. Any alternative must fit the mount, socket and available tube route.

🧩 Compare the whole parts list

Our read-only catalogue snapshot found compact micro-ATX or mini-tower cases from R849, with several models below R1,200. One R999 option listed 415mm graphics-card and 360mm liquid-cooler support. Those figures show that the Model 3 will need more than a compact label to stand out when local price and stock become known.

Use the case specials page to compare live options, then write down motherboard size, graphics-card length, radiator position, power-supply format and storage count. A chassis can pass four of those checks and still fail the fifth.

The case best-seller list is useful for seeing familiar local choices, but popularity does not replace a clearance check. The Model 3's strongest idea is space efficiency for large hardware. Its value will only become clear after a South African listing confirms price, warranty and included fan configuration.

Frequently Asked Questions

Does 435mm clearance mean every graphics card will fit?

No. Check the card's exact dimensions, power-connector bend, radiator position and any nearby cables or brackets.

Is micro-ATX the same as Mini-ITX?

No. Micro-ATX boards are larger and commonly offer more slots, while Mini-ITX uses a smaller square format.

Are five included fans always the best layout?

Not automatically. Verify each fan's direction and tune the curve so intake and exhaust work together without needless noise.

Can another 360mm AIO be used in the Model 3?

Potentially, yes. Confirm radiator thickness, fan thickness, tube reach, socket support and clearance around the motherboard.
