Five tiny SSDs can make shared storage look deceptively simple. Minisforum S5 NAS puts that idea into a fanless enclosure, with a 16 October announcement highlighting fast networking and always-on services. A buyer building a quiet South African workspace should price the surrounding storage and network before judging the box alone.
Quick Answer
S5 provides five M.2 NVMe bays, 10GbE and 2.5GbE networking, 12GB onboard memory and separate 128GB UFS system storage. Its maximum 40TB data capacity is not included in every configuration. No SA S5 price is established; Evetech's live 16 October listing of a Hiksemi T100 Pocket 512GB external SSD at R899 is a separate backup-device reference, not an S5 drive recommendation.

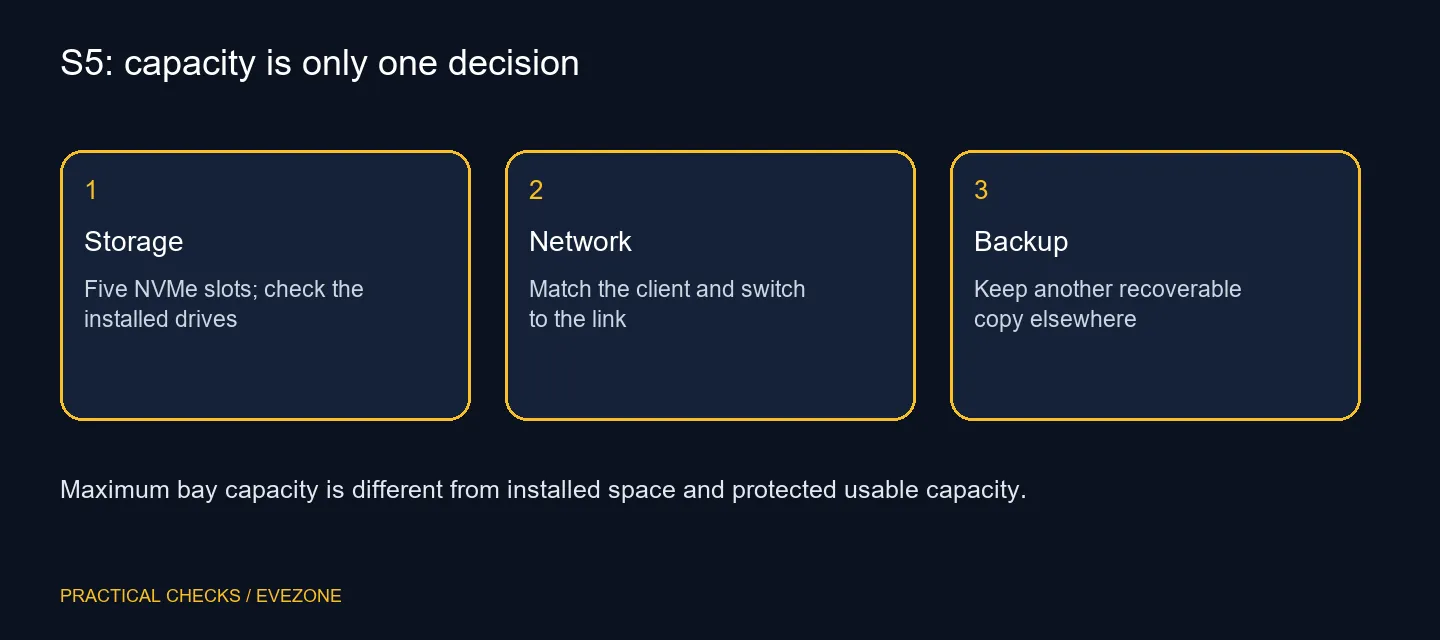

💾 Separate bay count from useful capacity
The specification identifies M.2 2280 NVMe slots, with up to 8TB per slot and PCIe 4.0 x1 connectivity. Do not carry a desktop SSD's full advertised benchmark into this enclosure. The slot connection, software configuration and task affect what the installed drive can deliver in practice.
Write down the actual SSD quantities and capacities on the quotation. Then account for whichever storage protection arrangement you intend to use. Five drives at their largest supported size do not automatically produce that same amount of protected usable space. Expansion planning also needs room for the files you will create next year.
Check nvme ssds for current drive choices, but confirm compatibility against the NAS documentation before purchasing. An external USB SSD has a different role and interface from an internal M.2 module. Similar capacities do not make the two interchangeable.

🌐 Work backwards from the slowest connection
The fast network ports are useful only when the computer at the other end can use them. A laptop on an ordinary wireless connection will not inherit a 10GbE wired link simply because the NAS has one. Include any required client adapter and switch in the budget, then check their supported rates.
Measure your real workflow before designing for a headline ceiling. Copying a large video file is different from opening thousands of small project files. A speed result from one pattern may not predict the other. Test with representative files and keep an original safe while learning the storage software.
If the existing network already meets your needs, a staged upgrade can be more sensible than replacing everything at once. Storage access should fit the people and devices using it, rather than require an expensive network solely to justify a new NAS.
🧊 Quiet operation still needs a recovery plan
Passive cooling removes a system fan; it does not remove heat. Keep the finned surfaces clear of fabric, tightly packed shelves and other warm equipment. The manufacturer's quoted sustained CPU-power result comes from its own laboratory conditions, so it is not a guarantee for every room or workload.
The AI features also deserve a sober service plan. The announcement describes an arrangement involving cloud reasoning and a local agent. That does not establish that every task runs entirely offline. Check permissions, data handling and any service requirements before giving an automated tool access to important folders.
Most of all, decide how you would recover a mistakenly deleted project. An independent copy on a suitable device from external ssds, or another planned destination, serves a different purpose from shared working storage. Practise restoring a small sample before moving the only copy of a large collection. A quiet NAS is useful when it makes everyday access easier and recovery remains possible.
Frequently Asked Questions
How many data drives does S5 accept?
The specification lists five M.2 2280 NVMe SSD slots. Match the supported drive format and capacity before ordering SSDs.
Is 40TB included with every unit?
No. That is the stated maximum across the bays. A configuration described as 0TB does not include that data-drive capacity.
Does a 10GbE port make every transfer that fast?
No. The client, switch, cable, storage configuration and workload can all limit throughput before the port ceiling.
Does fanless mean it needs no airflow?
No. Passive cooling still releases heat into the room. Leave the cooling surfaces clear and follow placement guidance.
Can the memory be assumed upgradeable?
No. The official specification describes onboard LPDDR5x with a 12GB maximum. Plan services around that limit.
Is a NAS the same as a separate backup?
No. Shared storage can still lose files through mistakes or other faults. Maintain and test a separate recoverable copy.
Plan the storage around the files you value?
Choose compatible working drives and a separate recovery destination before committing your collection to a new NAS.
