A reflective panel makes a case easy to notice. It does not make a graphics card easier to fit. The QUBE 540 Stainless Steel edition combines a polished exterior with a configurable chassis, so a South African build plan should start with the hardware arrangement rather than the reflections in the launch photographs.
Quick Answer
The new edition uses SUS304 stainless-steel panels and supports several layout choices. A different GAMDIAS AURA GC5 ELITE case was listed locally at R699 on 25 October; that is not a QUBE launch price. Choose the enclosure only after checking the combined GPU, radiator, power supply and front-port layout.
🧩 Read each clearance with its condition

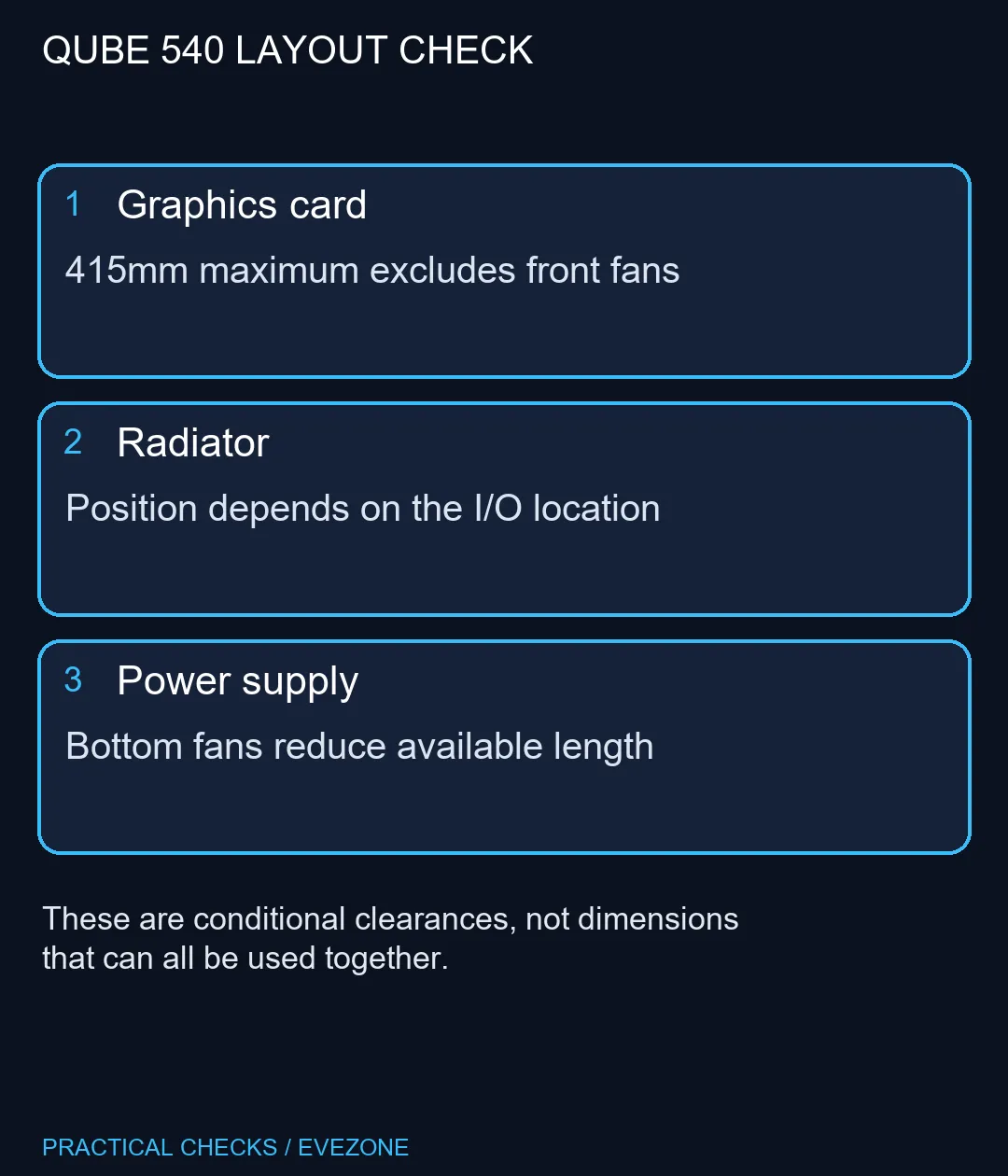

The published graphics-card allowance reaches 415mm when front fans are absent. That qualification changes the purchase decision. A long card that fits an empty enclosure may conflict with cooling installed later, and a radiator introduces another object into the same front area.
CPU-cooler clearance is listed at 172mm. Compare the assembled cooler height with that allowance, including any fan position required by the memory modules. The ATX, microATX and Mini-ITX motherboard list describes supported board formats, not universal clearance for everything attached to them.
Draw a simple component map before ordering. Put the actual GPU, cooler and radiator dimensions beside the chosen positions. If an existing case already fits those parts, the reason to move is likely appearance or access rather than a necessary performance improvement.

🔧 Choose the cooling and port positions together
The top, front and bottom have 360mm radiator options, but the I/O panel cannot occupy the same selected location. That makes radiator support a configuration decision. It is not a promise that every position remains available after arranging the ports and the rest of the hardware.
The power supply limit is similarly conditional: up to 200mm is described, reducing to 140mm with bottom fans installed. Leave room for the connectors and their cable routing as well as the metal PSU housing. Forcing a tight bend to satisfy a case drawing is a poor substitute for checking the actual installation.
Compare cases on special by usable layout, then use case fans to assess airflow components that fit that layout. Buying cooling first and hoping the enclosure has a spare mounting location reverses the useful order.
✨ Treat the polished surface as a material choice
The special finish pairs a mirror exterior with a matte hairline interior. Cooler Master describes dedicated forming and polishing processes, along with a care kit. Those details explain the edition's presentation; they are not independent acoustic or thermal results.
Think about where the machine will stand. Reflections change with nearby lighting, and accessible front ports matter more than a launch image's viewing angle. Horizontal placement should leave vents open just as vertical placement should, with a stable surface and cable access that suits the desk.
A regional release statement for North America does not establish South African stock, an arrival date or a Rand price. The R699 local case example provides a spending reference for a different enclosure. It carries no claim of equal materials, clearances or cooling. Keep the optional finish premium separate from the functional requirements of the build.
Frequently Asked Questions
What is different about this edition?
The stainless-steel panels have a mirror-polished exterior and a hairline interior. This finish does not by itself establish better cooling.
Can every 415mm graphics card fit?
The listed 415mm clearance excludes front fans. Account for installed cooling and cable space before choosing a long card.
Does it support an ATX motherboard?
ATX, microATX and Mini-ITX are listed. Check the exact assembly and mounting instructions before moving an existing build.
Can I put it on its side?
Horizontal and vertical placement are described. Keep vents clear and place the case on a stable surface in the intended configuration.
Is the R699 case the new QUBE?
No. The dated R699 example is a GAMDIAS AURA GC5 ELITE, a different local product used to put cosmetic spending in context.
Should a working case be replaced?
Measure a real clearance, cooling or access problem first. A reflective finish is a preference rather than evidence that the current case has failed.
