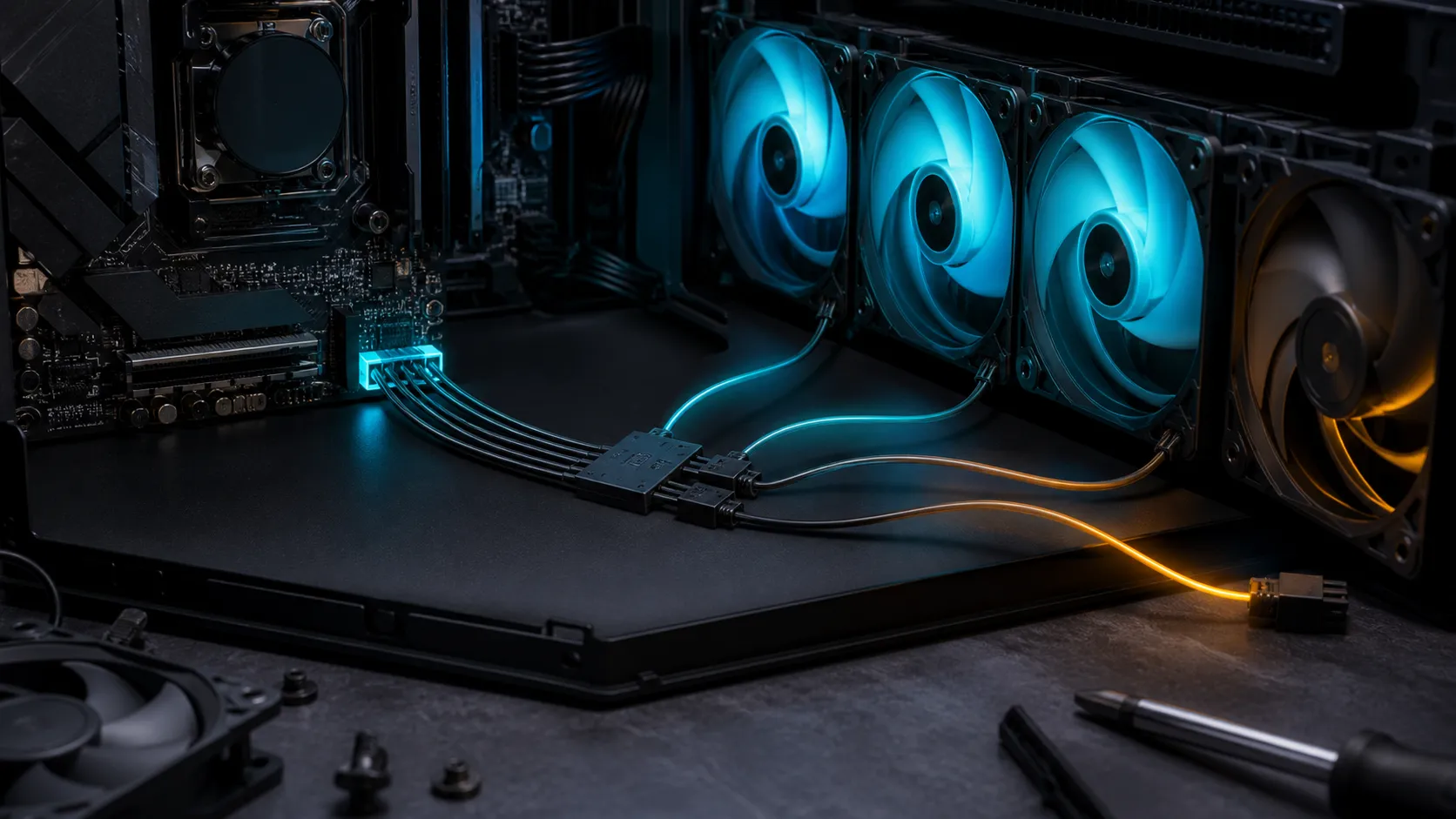

A fan splitter can turn one motherboard header into several connectors, but it does not create extra electrical capacity. The safe fan count comes from the header rating and the sum of every connected fan's current.
Quick Answer
Find the exact header rating in the motherboard manual, then add the rated current printed on all connected fans. Keep the combined load comfortably below the header's amp or watt maximum. A passive splitter shares the same limit. When the total is uncertain or too high, use a SATA-powered hub so the power supply carries the motor load while the motherboard provides control.
📘 Read the connector table, not the label alone
Motherboard headers may be named CPU_FAN, CPU_OPT, CHA_FAN, SYS_FAN, AIO_PUMP or W_PUMP. The name suggests purpose but does not guarantee a rating. ASUS manuals for the PRIME A620-PLUS WIFI6 and PRIME B850M-K, for example, list 1A and 12W for their fan headers. ASRock's B550 Phantom Gaming 4 page distinguishes 1A CPU-fan capacity from 2A chassis or water-pump headers.
Those examples show why a universal answer such as three fans per header is unsafe. A different board can assign another limit, and even two headers on one board may not match. Download the manual for the exact model and revision. Find the fan-connector table and note both current and power where supplied.
The motherboard category helps identify current board families, but electrical planning must use the selected model's own documentation.
➕ Add fan load with headroom
Read each fan label or data sheet for rated current in amps. Add every motor attached to the splitter. Three fans rated at 0.20A each produce a nominal combined load of 0.60A. On a documented 1A header that is below the printed maximum, but leaving headroom is wiser than building exactly at the limit.
Some fans list watts instead. At 12V, current equals watts divided by voltage. A 2.4W fan therefore represents 0.20A at the rated voltage. Do not mix the motor rating with separate RGB or ARGB lighting power if the lighting uses its own connector. If both functions draw through one proprietary connection, follow that controller's limits.
Startup current can be higher than the steady running value, and labels may present maximum rather than typical draw. That is useful for safe planning. If reliable maximum data is unavailable, reduce the planned fan count or use an externally powered solution.
Compare available case fans by connector type, current, size, speed range and airflow rather than assuming every 120mm fan draws the same power.
🔀 Understand splitter control and tach signals
A passive PWM splitter normally sends the same speed-control signal to all connected fans. Only one branch should return a tachometer signal, because combining several speed pulses would confuse the motherboard reading. That is why one connector on many splitters is marked as the reporting branch.
Fans on the same control channel work best when their speed ranges and behaviour are similar. Mixing a slow case fan and a high-speed radiator fan can produce an awkward curve even if the electrical load is safe. The reported rpm belongs to only one fan, so a failed fan on another branch may not trigger an obvious zero-rpm warning.
Three-pin voltage-controlled fans and four-pin PWM fans are not always managed identically. Set the motherboard header to the correct control mode. At very low commands, some fans can stall; build a curve that starts reliably after every cold boot.
🔋 Move larger groups to a powered hub
A SATA-powered hub takes fan motor power from the power supply. It still connects to a motherboard header for the PWM or voltage-control reference, depending on its design. This is the safer path for a large group, high-current fans or uncertain startup load.
Review fan accessories and controllers for the required channel count and connector system. Confirm whether the device is a powered hub, a passive splitter or a software controller. Similar-looking products can manage power very differently.
Keep the total SATA-branch load within the power supply cable's documented capacity and avoid forcing incompatible plugs. Route cables away from fan blades and confirm every fan spins after assembly. Then set curves against the correct temperature source, such as CPU for a radiator group or motherboard sensor for case airflow.
Frequently Asked Questions
Can a passive three-way splitter safely run three fans?
Only if the sum of all three rated currents, including sensible headroom, stays below the exact motherboard header limit.
Why does only one fan report rpm through a splitter?
Multiple tachometer pulse signals would overlap, so the splitter normally returns the speed signal from one designated branch.
Does a SATA-powered hub remove every limit?
No. It moves motor power away from the header, but the hub, SATA cable, power supply branch and control method still have documented limits.
Ready to wire the fan group safely? Open the exact board manual, total the nameplate current, leave operating headroom, and choose a powered hub when the arithmetic is close.
